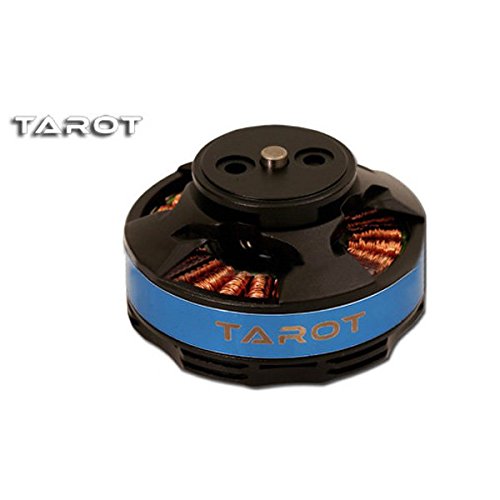

Tarot 4006/620KV Multi-axis Brushless Motor TL68P02
1. Item Name: Tarot 4006/620KV Multi-axis Brushless Motor TL68P02
2. Item description:
Tarot 4006/620 kv efficient several brushless motor created for 4 axis and six axis rotor airplane/ hexacopter,
utilizing the high accuracy CNC processing production, shaped flat table is smooth
and perfect, outstanding balance to the new design of efficient turbofan cover, offer a powerful cooling airflow,
the rotor utilizing high ndfeb magnetic material and fine.Product criteria: Peripheral motor diameter: 46MM Stator diameter: 40.6
M Stator Thickness: 6MM Stator: 24 slots
Motor Poles: 22P
Size: 0.23 MM
Equipment shaft mounting diameter: cents 4MM
Motor height: 22.0 MM
Motor shaft Complete length: 30.50 MM
Per volt Speed: 620 RPM/ Volt
Motor Weight: 82G
Motor resistance: 126 mΩ14.8 V No Load Current: 0.8 A
14.8 Load Current: 14A
4006 brushless motor setup specs: 27.7 MM equilateral triangle
Propeller setup specs: the main hole diameter 4mm, 3mm diameter side hole center distance 12mm
Requirements:1 X 4006/620KV brushless motor 82G
3X M3 × 6MM cup head screws
2X M3 × 8MM round head screws
1X Metal rotor mounting piece 2.5 G
1. Item Name: Tarot 4006/620KV Multi-axis Brushless Motor TL68P02
2. Item description:
Tarot 4006/620 kv efficient several brushless motor created for 4 axis and six axis rotor airplane/ hexacopter,
utilizing the high accuracy CNC processing production, shaped flat table is smooth
and perfect, outstanding balance to the new design of efficient turbofan cover, offer a powerful cooling airflow,
the rotor utilizing high ndfeb magnetic material and fine.Product criteria: Peripheral motor diameter: 46MM Stator diameter: 40.6
M Stator Thickness: 6MM Stator: 24 slots
Motor Poles: 22P
Size: 0.23 MM
Equipment shaft mounting diameter: cents 4MM
Motor height: 22.0 MM
Motor shaft Complete length: 30.50 MM
Per volt Speed: 620 RPM/ Volt
Motor Weight: 82G
Motor resistance: 126 mΩ14.8 V No Load Current: 0.8 A
14.8 Load Current: 14A
4006 brushless motor setup specs: 27.7 MM equilateral triangle
Propeller setup specs: the main hole diameter 4mm, 3mm diameter side hole center distance 12mm
Requirements:1 X 4006/620KV brushless motor 82G
3X M3 × 6MM cup head screws
2X M3 × 8MM round head screws
1X Metal rotor mounting piece 2.5 G
Key Features
1.Product NameTarot 4006620KV Multi-axis Brushless Motor TL68P02
2.Product description
Tarot 4006620 kv efficient multiple brushless motor designed for four axis and six axis rotor aircraft hexacopter,
using the high precision CNC processing production, shaped flat table is smooth
and flawless, excellent balance to the new design of efficient turbofan cover, provide a powerful cooling airflow,
